Sbm hgm series: kaolin processing equipment
Published on: October 26, 2023
In the demanding world of non-metallic mineral processing, achieving consistent, high-quality kaolin powder with optimal efficiency and minimal operational headaches is a universal challenge. Shanghai SBM Machinery Equipment Co., Ltd. addresses this challenge head-on with its sophisticated HGM series grinding solutions. Engineered through decades of global experience serving over 180 countries, SBM's kaolin processing equipment—encompassing advanced mills like the European Trapezium Mill, Vertical Roller Mill, Ultrafine Mill, and Ultrafine Vertical Mill—is designed to transform raw kaolin into high-value powders ranging from coarse fills to ultra-fine coatings. These systems integrate cutting-edge technologies for energy savings, wear reduction, automated control, and stringent environmental compliance, providing a total solution that boosts productivity while slashing long-term operating costs.
The journey of kaolin from mined clay to a functional industrial powder is precision-dependent. Traditional grinding methods often struggle with inconsistent particle size distribution, high energy consumption, and excessive maintenance downtime. SBM's HGM series equipment is built upon a foundation of deep process understanding and continuous innovation. Each mill in the portfolio is not merely a machine but a system engineered for specific stages and fineness requirements within kaolin processing. From initial size reduction to ultrafine grinding for premium applications, the technology ensures that every micron of the product meets exact specifications.
For high-volume production of kaolin powders in the 30-400 mesh range, the MTW Series European Trapezium Grinding Mill stands out. Its design is a direct response to thousands of client feedback points, resulting in features that directly tackle operational pain points. The unique cone gear whole transmission system eliminates traditional vulnerable components, delivering higher mechanical efficiency and remarkable space savings. The patented curved shovel blade design is a masterstroke in wear management; only the blade itself needs replacement during maintenance, drastically reducing spare parts inventory and downtime. Furthermore, the optimized arc air duct ensures smooth material flow with minimal pressure loss, enhancing overall classification efficiency within the mill chamber.
When project demands call for exceptional integration and energy efficiency, the LM Vertical Roller Mill emerges as the ideal workhorse. Its genius lies in consolidation. By integrating crushing, drying, grinding, and separation into a single, compact footprint, it reduces the plant's floor area by up to 50% compared to traditional ball mill systems—a significant capital saving. The grinding principle, where rollers compress material on a rotating table without direct metal-to-metal contact, leads to dramatically lower wear rates and energy consumption that can be 30-40% less. Coupled with an expert automatic control system, operators can manage the entire process remotely, ensuring stable, labor-efficient production of consistent kaolin powder under fully enclosed, dust-free conditions.

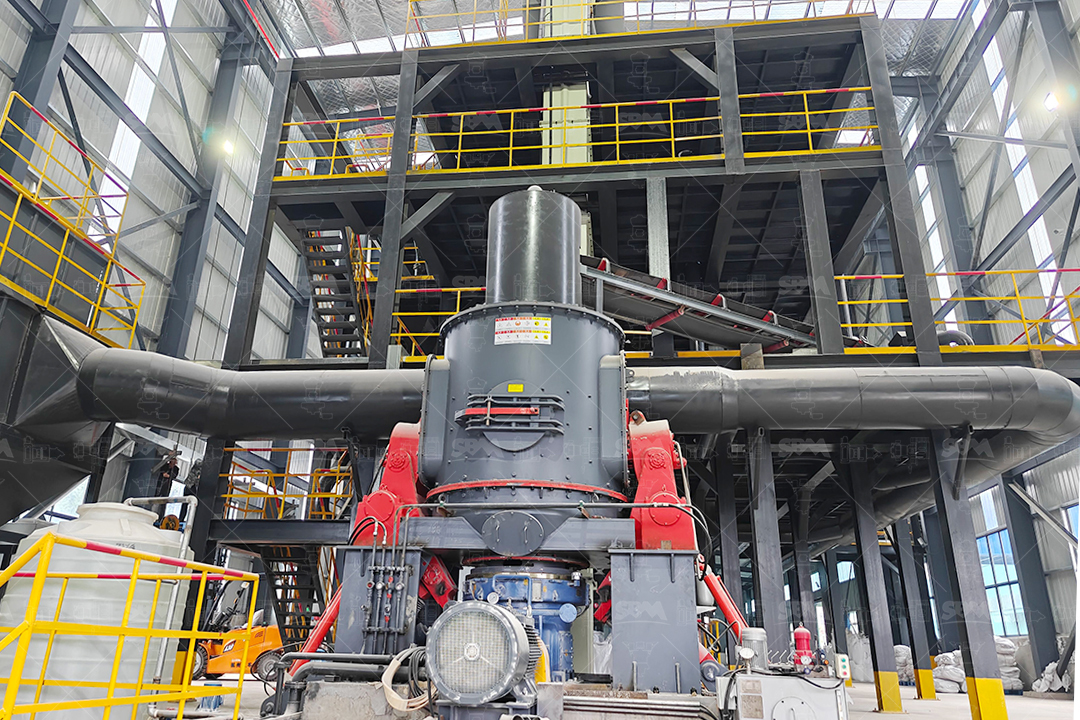

The frontier of kaolin value addition lies in ultrafine and high-purity powders. Here, SBM's SCM Ultrafine Mill and LUM Ultrafine Vertical Mill demonstrate technological leadership. The SCM series is engineered for fineness up to 4000 mesh, achieving a one-time fineness of D97≤5μm. Its high-output, low-energy-consumption design, featuring a heavy-duty rotor and advanced classifier, ensures that producing superfine kaolin for paper, paint, or cosmetics is both economically viable and quality-assured. Building on this, the LUM Ultrafine Vertical Mill incorporates German separation technology and Taiwan grinding roll expertise. Its multi-rotor classifier allows for precise, customizable cut points, ensuring no coarse particles contaminate the final product. The intelligent PLC/DCS system automatically adjusts grinding pressure and classifier speed, guaranteeing stability and repeatability in producing the most demanding ultrafine grades.
Across all HGM series solutions, SBM prioritizes sustainability and operational smoothness. Environmental protection is not an afterthought but a core design parameter. Fully sealed systems operating under negative pressure, coupled with high-efficiency pulse dust collectors, ensure plant emissions far exceed national standards. Advanced sound insulation keeps noise pollution in check. This commitment, combined with global service and support network, means clients invest not just in equipment, but in a reliable, future-proof partnership for their kaolin processing operations.
Frequently Asked Questions (FAQs)
Q1: Our current kaolin grinding system suffers from high energy costs and frequent wear part replacement. How does SBM's equipment address this?
A: SBM mills are engineered for efficiency and durability. Features like the Vertical Roller Mill's low-wear grinding principle (30-40% less energy than ball mills), the MTW Mill's replaceable shovel blades, and the use of special alloy materials in rollers and rings significantly reduce both power consumption and the frequency/cost of spare part changes.
Q2: We need to produce several different fineness grades of kaolin from the same feed. Is flexible adjustment possible?
A: Absolutely. SBM's advanced classifiers, especially in the Ultrafine and Ultrafine Vertical Mills, allow for precise and rapid adjustment of finished product fineness (from 30 mesh to 4000 mesh) through frequency-conversion control and PLC systems, enabling quick product switches with minimal transition time.
Q3: Dust control and plant cleanliness are major concerns for our facility. Are these mills environmentally friendly?
A: Yes. All HGM series mills are designed as fully sealed systems operating under negative pressure. This, combined with efficient powder collection systems (like dual cyclones and pulse dust collectors), ensures virtually no dust spillover, creating a cleaner workplace and ensuring emissions compliance.
Q4: We have limited plant space. Can these systems fit into a compact layout?
A: Particularly, the LM Vertical Roller Mill and LUM Ultrafine Vertical Mill are ideal for space-constrained sites. Their integrated design consolidates multiple functions into a single unit, reducing the overall footprint by up to 50% compared to traditional systems, and they can even be arranged outdoors.
Q5: How complex is the operation and maintenance of these advanced grinding systems?
A: SBM prioritizes user-friendliness. The mills are equipped with expert automatic control systems (PLC/DCS) that enable simple local or remote operation, often requiring minimal manual intervention. Maintenance is simplified through modular design (e.g., easily accessible wear parts) and stable, low-vibration operation that reduces mechanical stress.
