Sbm's ore processing method
Published: October 26, 2023
SBM Machinery Equipment Co., Ltd. has established itself as a comprehensive solution provider in the mineral processing industry, offering advanced grinding technologies that address the evolving needs of modern ore processing. Through innovative engineering and decades of research, SBM has developed a portfolio of grinding equipment that delivers exceptional performance across various applications, from coarse crushing to ultrafine powder production. This article explores SBM's sophisticated ore processing methodology, focusing on key equipment innovations that provide solutions to common industry challenges while maintaining operational efficiency and environmental compliance.
The foundation of SBM's ore processing approach lies in understanding the complete mineral processing workflow and providing tailored solutions for each stage. With equipment serving over 180 countries and regions worldwide, SBM has accumulated extensive practical experience in diverse industrial applications including power generation, building materials, mining, metallurgy, chemicals, and non-metallic minerals. This global perspective has informed the development of grinding systems that combine technical excellence with practical operational benefits.

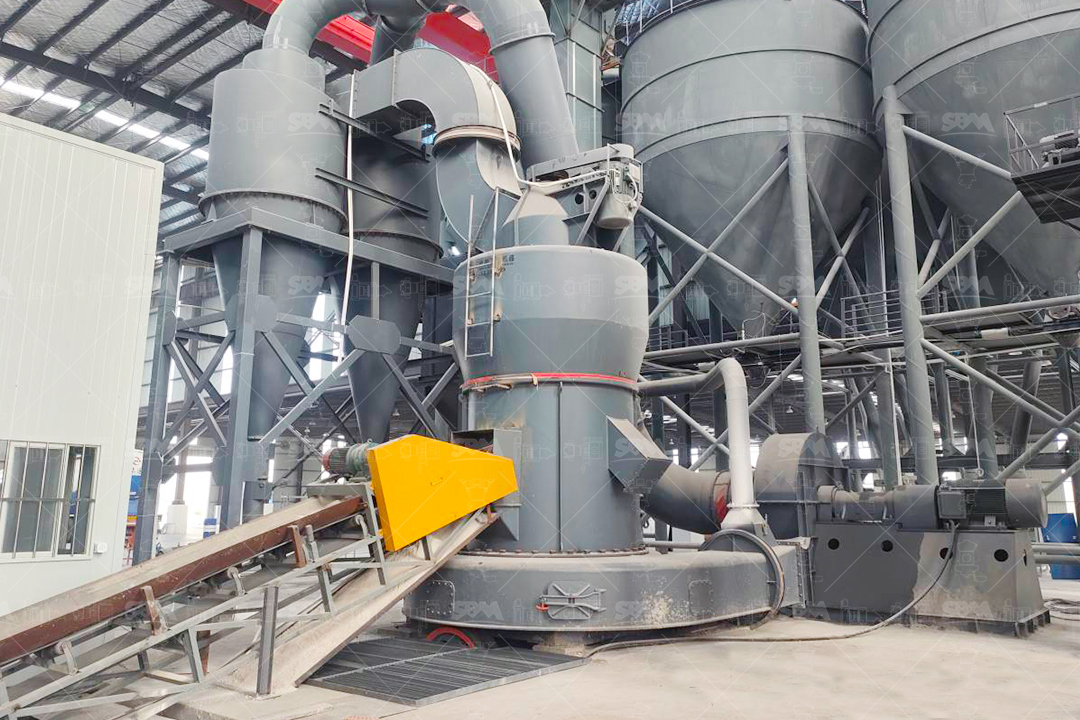

MTW Series European Trapezium Grinding Mill: Evolution of Traditional Technology
The MTW Series European Trapezium Grinding Mill represents a significant advancement over conventional grinding mills, incorporating international advanced technologies based on extensive research and customer feedback from more than 9,500 installations. This mill features several proprietary innovations that distinguish it from traditional equipment, including cone gear whole transmission, inner oil absorption lubrication system, and arc air flue design.
The unique wear-proof perching knife design incorporates combined-type shovel blades that significantly reduce wearing parts costs. During maintenance, only the blade requires replacement rather than the entire assembly. The curved shovel blades are engineered to optimize feeding angle and extend the service life of rollers and rings, ultimately reducing long-term operating expenses. The arc air duct design prevents air energy loss while ensuring efficient material transportation, with high-strength guard plates protecting the working surfaces from premature wear.
With an input size capacity of 0-50mm and output fineness ranging from 30-400 mesh at throughput rates of 3-40tph, the MTW mill demonstrates remarkable versatility across various mineral processing applications. The cone gear transmission system achieves higher mechanical efficiency while saving valuable floor space, contributing to lower initial investment costs. The unobstructed wear-resistant volute design further enhances wind-driven transmission efficiency within the mill while minimizing maintenance requirements for material handling components.
LM Vertical Roller Mill: Integrated Processing Solution
SBM's LM Vertical Roller Mill addresses critical industry challenges of low output and high energy consumption through an integrated design that combines crushing, drying, grinding, powder separation, and transportation functions within a single unit. This comprehensive approach results in a system that occupies approximately 50% of the space required by conventional ball-milling systems while offering superior operational efficiency.
The vertical configuration enables direct grinding action where rollers contact materials on the grinding plate without direct metal-to-metal contact between components. This design principle, combined with high-quality materials for rollers and grinding plates, results in significantly reduced wear and extended service life. The energy consumption is notably lower than traditional ball-milling systems, with documented reductions of 30-40% under comparable operating conditions.
Operating with input sizes up to 50mm and producing powders ranging from 30-400 mesh at capacities from 3-400tph, the LM Vertical Roller Mill accommodates both small-scale and large-scale production requirements. The integrated expert automatic control system enables seamless switching between remote and local control modes, simplifying operation and reducing labor costs. Environmental performance is enhanced through stable operation with minimal vibration, low noise emission, and completely sealed negative-pressure operation that prevents dust spillage.

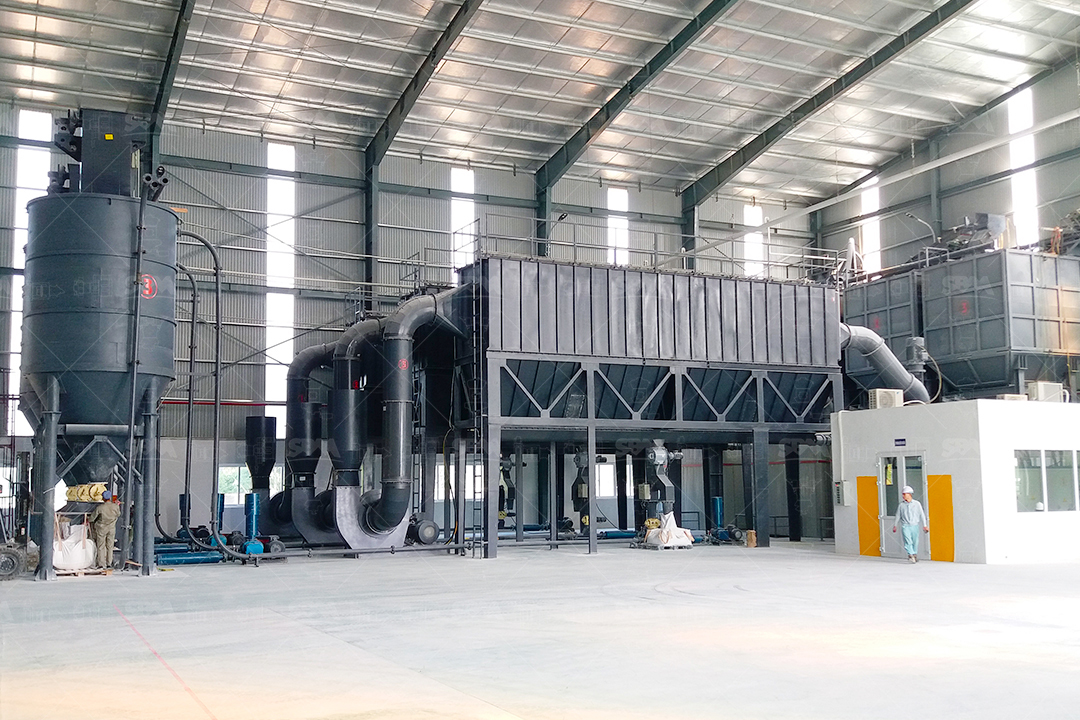

SCM Ultrafine Mill: Precision in Fine Grinding
As market demands for finer powder specifications continue to increase, conventional grinding equipment often proves inadequate. SBM's SCM series ultrafine grinding mill specifically addresses this gap with capability to produce powders adjustable from 325 to 2500 meshes, with single-pass fineness reaching D97≤5μm. Through rigorous testing at geological research institutes, the mill has demonstrated capability to achieve fineness levels up to 2500 meshes in specific applications.
The technical advantages of the SCM ultrafine mill include remarkably high output with low energy consumption, achieving more than double the capacity of jet mills while reducing energy usage by approximately 30%. The intelligent control system incorporates automatic feedback mechanisms that ensure fast and stable conversion to finished products while minimizing manual intervention. Frequency-conversion control enables precise adjustment of product specifications, while the efficient vertical turbine powder classifier ensures accurate particle size distribution without coarse powder spillover.
Durability is enhanced through heavy rotor design and specialized materials for rollers and rings, providing several times the service life of conventional components. The grinding chamber employs a bearing-free screw design that maintains stability through balanced treatment, eliminating vibration during operation. Environmental considerations are addressed through efficient dual powder collection combining cyclones and pulse dust collectors, achieving dust collection efficiency significantly exceeding international standards.
LUM Ultrafine Vertical Mill: Advanced Technology Integration
Representing the latest evolution in ultrafine grinding technology, the LUM Ultrafine Vertical Mill integrates powder grinding, separation, and transportation functions in a single advanced system. Drawing from vertical mill heritage while incorporating Taiwanese grinding roller technology and German powder separation expertise, this equipment serves as a professional solution for medium and high-end processing applications across numerous industries.
The unique grinding curves of roller shells and lining plates are engineered based on ultrafine pulverization principles, facilitating material bed formation that enhances grinding efficiency and increases the proportion of finished product from primary grinding stages. Multi-rotor powder classifier technology enables customization of finished product fineness within selected ranges while eliminating low-grade material contamination. The PLC control system manages critical parameters including grinding pressure, grinding disc rotation speed, and classifier velocity for optimal performance.
With input size capability of 0-20mm and output fineness ranging from 325-4000 mesh at throughput rates of 10-70tph, the LUM mill demonstrates exceptional versatility for ultrafine applications. The intelligent control system employs PLC/DCS automation for precise grinding pressure adjustment, ensuring stable operation with high efficiency. Frequency-conversion speed regulation adapts the mill to various material characteristics, while the sealed negative-pressure operation prevents environmental contamination.
Optimized Ball Mill: Traditional Technology Enhanced
While ball mill technology represents established methodology in mineral processing, SBM has addressed persistent industry concerns regarding wear rates and energy consumption through structural optimization and advanced materials. The improved design significantly reduces spare parts costs while maintaining the reliability that has made ball mills industry staples for decades.
SBM offers both dry and wet ball mill configurations to accommodate different processing requirements. Dry ball mills primarily produce common powder specifications, while wet ball mills find extensive application in mineral dressing operations. With input size capacity of 0-25mm and output range of 0.2-0.074mm at throughput rates of 3-65tph, these mills provide reliable performance across numerous mineral processing scenarios.
The comprehensive SBM ore processing methodology demonstrates how thoughtful engineering and continuous innovation can address both traditional and emerging challenges in mineral processing. By offering equipment solutions that span the complete size reduction spectrum from coarse crushing to ultrafine grinding, SBM provides mining and processing operations with integrated systems that optimize efficiency, reduce operational costs, and maintain environmental compliance.
Frequently Asked Questions
How does SBM equipment address the common problem of high wear part replacement costs?
SBM mills incorporate specialized wear-resistant materials and innovative designs that significantly extend component lifespan. The MTW series features unique perching knife designs that allow replacement of only the blade rather than entire assemblies, while vertical mills minimize direct metal-to-metal contact to reduce wear.
What solutions does SBM offer for operations struggling with high energy consumption?
SBM's grinding equipment, particularly the LM Vertical Roller Mill and SCM Ultrafine Mill, are engineered for optimal energy efficiency. Documented energy savings of 30-40% compared to traditional ball mills are achievable through advanced mechanical designs and intelligent control systems that optimize power usage.
How does SBM technology handle varying feed material characteristics?
SBM mills incorporate adjustable parameters including grinding pressure, rotation speeds, and classifier velocities that can be fine-tuned to accommodate different material properties. The intelligent control systems automatically adjust operations to maintain consistent product quality despite feed variations.
What environmental compliance features are integrated into SBM grinding systems?
All SBM mills feature sealed designs operating under negative pressure to prevent dust emissions. Advanced dust collection systems combining cyclones and pulse technologies exceed international environmental standards, while noise reduction technologies maintain workplace compliance.
How does SBM equipment address the challenge of achieving consistent product fineness?
Advanced classification systems in SBM mills, particularly the multi-rotor classifiers in LUM series and vertical turbine classifiers in SCM series, provide precise particle size control. Automated monitoring and adjustment systems maintain target fineness specifications despite operational variations.
