Suitable mills for gypsum processing
Published: October 26, 2023
Gypsum processing requires specialized grinding equipment to achieve optimal particle size distribution, energy efficiency, and operational reliability. Shanghai SBM Machinery offers a comprehensive portfolio of mills specifically engineered to handle gypsum's unique characteristics across various fineness requirements and production scales. From coarse grinding for construction materials to ultrafine powders for specialized applications, our MTW European Trapezium Mill, LM Vertical Roller Mill, SCM Ultrafine Mill, LUM Ultrafine Vertical Mill, and optimized Ball Mills provide tailored solutions that address common industry challenges including high energy consumption, wear part costs, and environmental compliance. With over 180 countries served, SBM's technology integrates advanced features like intelligent control systems, efficient classification, and environmentally friendly designs to maximize productivity while minimizing operational expenses.
Gypsum processing spans multiple industries—from building materials and construction to agriculture and industrial applications—each demanding specific particle characteristics. The selection of appropriate milling equipment significantly impacts product quality, production costs, and environmental footprint. SBM's grinding solutions are engineered to address these diverse requirements through specialized designs that optimize performance across the entire gypsum processing spectrum.

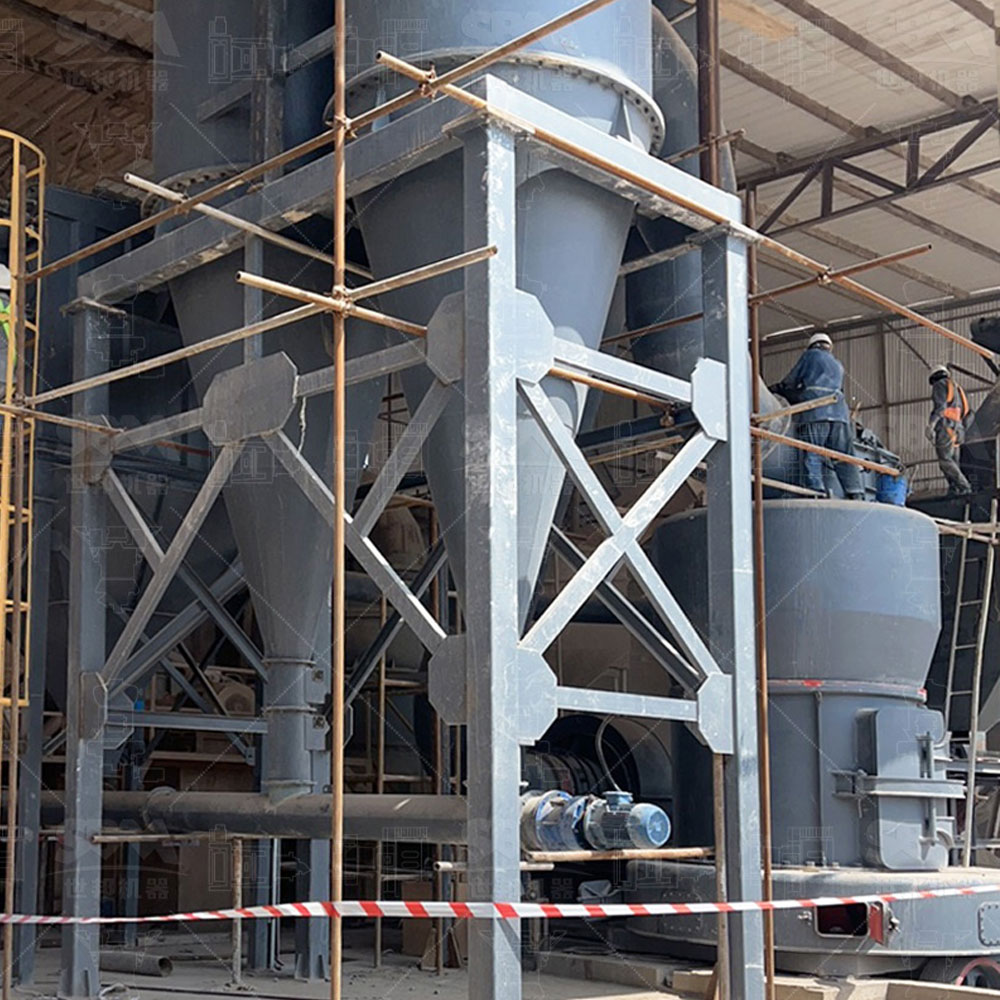

MTW European Trapezium Mill: Reliable Workhorse for Standard Applications
The MTW Series European Trapezium Grinding Mill represents an evolution of traditional Raymond mill technology, incorporating international advanced technologies and customer feedback from over 9,500 installations. With an input size capability of 0-50mm and output range of 30-400 mesh, this mill handles production capacities from 3 to 40 tph, making it ideal for standard gypsum processing requirements.
Key innovations include the cone gear whole transmission system that enhances mechanical efficiency while reducing space requirements and initial investment. The unique wear-proof perching knife design features combined-type shovel blades that significantly reduce wearing parts costs—during maintenance, only the blade requires replacement rather than the entire assembly. This design extends roller and ring service life, directly lowering long-term operating expenses.
The arc air duct design minimizes air energy loss while ensuring efficient material transportation, complemented by high-strength guard plates that protect critical working surfaces. The unobstructed wear-resistant volute further enhances wind-driven transmission efficiency within the mill chamber. These features collectively make the MTW European Trapezium Mill a robust solution for gypsum processors seeking reliability and cost-effectiveness in medium-scale operations.
LM Vertical Roller Mill: High-Capacity Solution with Integrated Drying
For large-scale gypsum processing operations requiring integrated drying capabilities, the LM Vertical Roller Mill offers a comprehensive solution that addresses limitations of conventional systems. With capacity ranging from 3 to 400 tph and output fineness matching the MTW series (30-400 mesh), this mill integrates crushing, drying, grinding, powder separation, and transportation functions within a single compact unit.
The vertical design reduces floor space requirements by approximately 50% compared to ball mill systems and allows outdoor installation, substantially lowering civil engineering costs. Operating costs are minimized through reduced wear—the grinding rollers do not directly contact the grinding plate, and both components utilize high-quality materials for extended service life. Energy consumption is 30-40% lower than traditional ball milling systems, providing significant savings for high-volume operations.
An expert automatic control system enables remote operation and free switching between control modes, reducing labor requirements while maintaining consistent product quality. Environmental performance is exceptional with low vibration operation, minimal noise emission, and a fully sealed system operating under negative pressure to prevent dust spillage. This makes the LM Vertical Roller Mill particularly suitable for gypsum processing facilities with strict environmental regulations and high production demands.

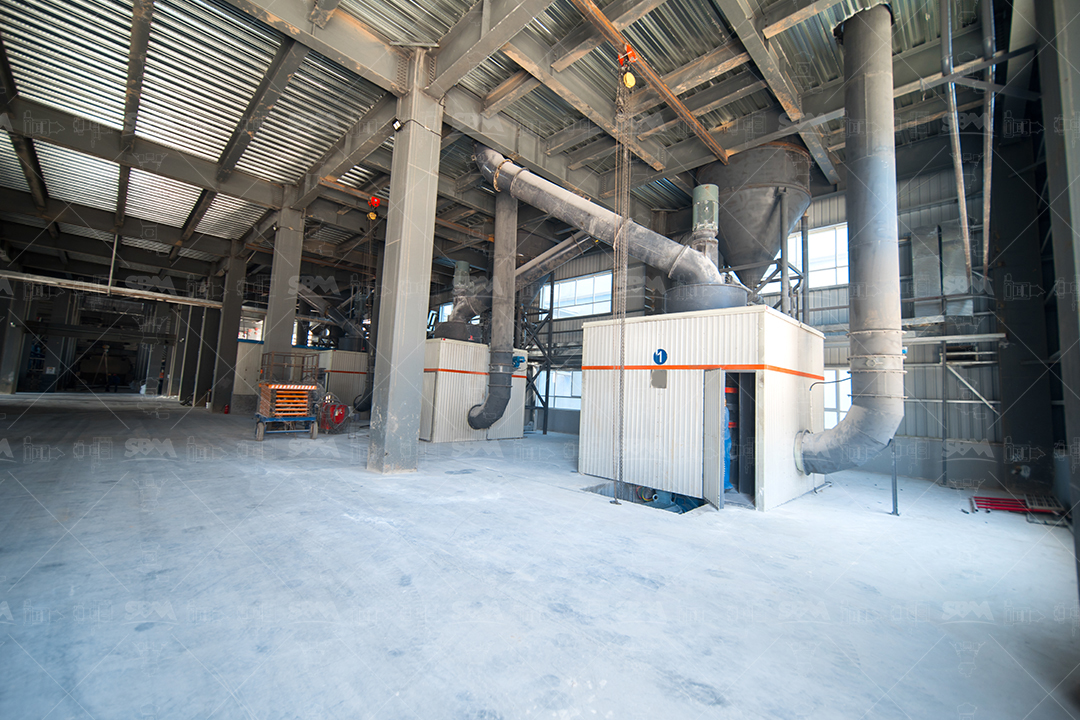

SCM Ultrafine Mill: Precision Grinding for Specialized Applications
When gypsum applications require exceptional fineness—from 325 to 4000 mesh—the SCM Series Ultrafine Grinding Mill delivers precision performance that conventional Raymond mills cannot achieve. With disposable fineness reaching D97≤5μm and capacity ranging from 0.5 to 25 tph, this mill serves specialized markets requiring ultra-fine gypsum powders.
The high-output, low-energy-consumption design provides more than double the capacity of jet mills while reducing energy consumption by 30%. Automatic feedback systems ensure fast and stable product conversion, while intelligent controls directly reduce labor costs. Frequency-conversion control enables convenient adjustment of product fineness, complemented by an efficient vertical turbine powder classifier that ensures accurate particle size distribution without coarse powder spillover.
Durability is enhanced through heavy rotor design and specialized materials for rollers and rings, providing several times longer service life than conventional components. The grinding chamber's bearing-free screw design and balance treatment ensure stable, vibration-free operation. Environmental compliance is achieved through efficient double powder collection combining cyclone and pulse dust collectors, exceeding international standards for dust emission control.
LUM Ultrafine Vertical Mill: Advanced Technology for Medium to High-End Applications
Combining vertical mill efficiency with advanced separation technology, the LUM Ultrafine Vertical Mill integrates powder grinding, separation, and transportation for medium to high-end gypsum applications. With capacity from 10 to 70 tph and output fineness matching the SCM series (325-4000 mesh), this mill incorporates Taiwanese grinding roller technology and German powder separating technology for superior performance.
Unique grinding curves for roller shells and lining plates facilitate material bed formation, improving grinding efficiency and increasing the proportion of finished product from primary grinding. The multi-rotor powder classifier principle enables customized fineness ranges without low-grade material contamination. PLC control systems precisely manage critical parameters including grinding pressure, grinding disc rotation speed, and classifier velocity.
Intelligent control through PLC/DCS automatic systems ensures accurate grinding pressure control for efficient, stable operation. Remote control capability and frequency-conversion speed regulation enhance operational flexibility. Environmental considerations are addressed through specialized structural designs that minimize vibration and noise, combined with full-system sealing and negative pressure operation to prevent powder escape.
Optimized Ball Mill: Traditional Technology Enhanced
While ball mill technology is mature for mineral processing, SBM's optimized ball mills address historical limitations for gypsum applications. With input size up to 25mm and output range of 0.2-0.074mm (approximately 65-200 mesh), these mills handle capacities from 3 to 65 tph. Structural improvements and advanced materials significantly reduce wear part costs that traditionally plagued ball mill operations.
The availability of both dry and wet ball mill configurations provides flexibility for different gypsum processing requirements. Dry ball mills suit common powder production, while wet ball mills excel in mineral dressing applications where slurry processing is required. These enhancements maintain the reliability of traditional ball mill technology while addressing key customer pain points around maintenance costs and energy efficiency.
Selecting the Right Mill for Your Gypsum Processing Needs
Choosing the appropriate grinding equipment depends on multiple factors including required product fineness, production capacity, energy efficiency targets, and environmental compliance requirements. For standard gypsum powder (30-400 mesh) at medium capacities, the MTW European Trapezium Mill offers balanced performance and operating economy. Large-scale operations benefit from the LM Vertical Roller Mill's integrated drying and high efficiency.
Ultra-fine applications (325-4000 mesh) should consider either the SCM Ultrafine Mill for specialized precision or the LUM Ultrafine Vertical Mill for medium to high-end requirements with advanced control systems. Traditional ball mill applications are well-served by SBM's optimized designs that reduce historical maintenance challenges. Across all options, SBM's global experience—serving over 180 countries—ensures that each mill incorporates practical innovations addressing real-world gypsum processing challenges.
Frequently Asked Questions
What is the most common operational challenge in gypsum milling?
Excessive wear of grinding components remains a primary concern, particularly with traditional mills. SBM addresses this through specialized materials and designs like the combined-type shovel blade in our MTW Mill that reduces replacement frequency and costs.
How can I reduce energy consumption in my gypsum processing operation?
Vertical roller mills typically offer 30-40% energy savings compared to traditional systems. Our LM Vertical Roller Mill integrates multiple processes to minimize power requirements while maintaining output quality.
What mill is suitable for both coarse and fine gypsum grinding?
The MTW European Trapezium Mill handles a wide range from 30-400 mesh, making it versatile for various applications. For ultra-fine requirements, the LUM Ultrafine Vertical Mill provides broader flexibility.
How important is drying capability in gypsum processing equipment?
Integrated drying significantly impacts operational efficiency, especially for gypsum with higher moisture content. Our LM Vertical Roller Mill combines grinding and drying functions to streamline the process.
What environmental considerations should guide mill selection?
Dust control, noise reduction, and energy efficiency are critical. SBM mills feature fully sealed systems operating under negative pressure to prevent dust escape, with noise reduction technologies and optimized energy consumption profiles.
