High specific surface steel slag vertical mill for composite steel slag powder
Published on: October 26, 2023
Steel slag, a byproduct of steelmaking, has long been underutilized due to its complex mineral composition and low reactivity. However, with increasing pressure to reduce industrial waste and improve resource efficiency, the production of composite steel slag powder with high specific surface area has become a critical solution for the cement and construction industries. Shanghai SBM Machinery Equipment Co., Ltd. (SBM Machinery) offers a state-of-the-art High Specific Surface Steel Slag Vertical Mill specifically engineered to transform steel slag into a high-value additive for composite materials. This vertical roller mill integrates drying, grinding, and powder selection into a single system, delivering a finished product with a specific surface area exceeding 450 m²/kg while maintaining low energy consumption and minimal wear. By leveraging advanced vertical mill technology, our equipment enables clients to achieve superior fineness, consistent quality, and operational stability—directly addressing common industry challenges such as low grinding efficiency, high energy costs, and frequent maintenance downtime.
The Challenge of Steel Slag Grinding
Steel slag is notoriously difficult to grind due to its high iron content, hardness, and abrasiveness. Traditional ball mills often struggle with low throughput, rapid wear of grinding media, and excessive energy consumption—typically 30% to 40% higher than modern vertical mills. Additionally, achieving the high specific surface area required for composite slag powder (often 400–500 m²/kg) demands precise control over grinding pressure, classifier speed, and material residence time. Many operators face inconsistent fineness, high metallic iron content in the final product, and frequent shutdowns for roller and liner replacement. These pain points directly impact production costs, product quality, and overall plant profitability.

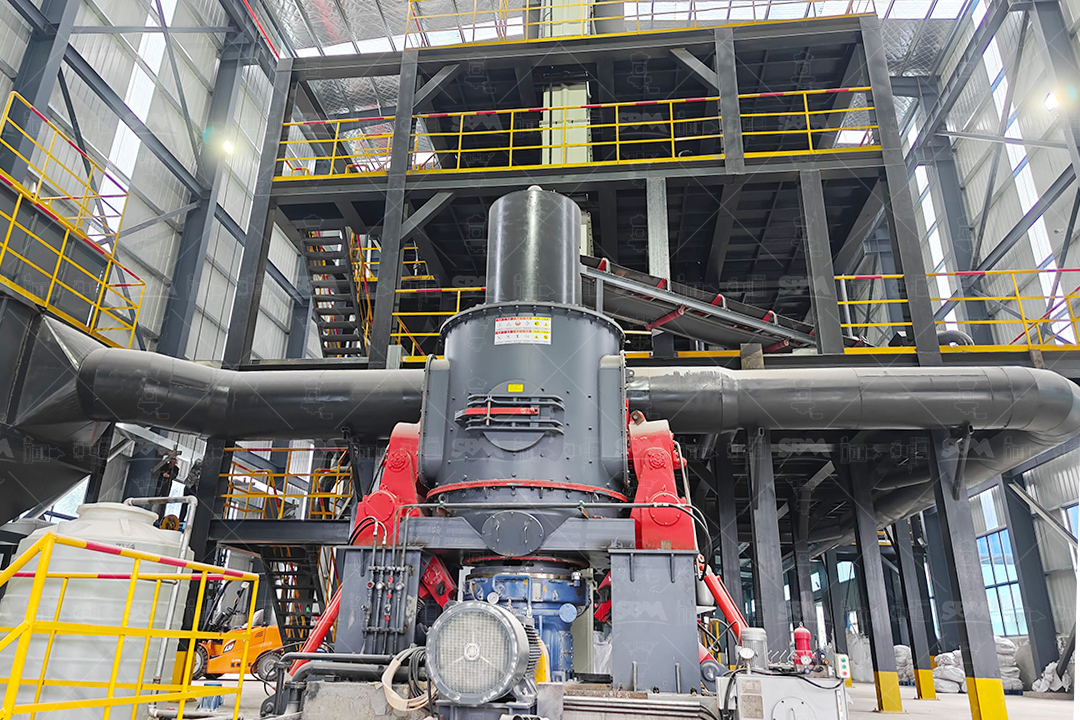

Our Solution: High Specific Surface Steel Slag Vertical Mill
SBM's LM Vertical Roller Mill is the ideal choice for steel slag processing, specifically configured for high specific surface composite powder. The mill features a unique roller and grinding table design that creates a stable material bed, ensuring efficient grinding even with hard, abrasive slag. The integrated classifier with multi-rotor technology allows precise control over particle size distribution, enabling consistent production of ultrafine slag powder with D97≤45μm. Key advantages include:
- Small Comprehensive Investment: The mill integrates crushing, drying, grinding, and classifying—reducing floor space by up to 50% compared to ball mill systems, and allowing outdoor installation.
- Low Operating Costs: Rollers and grinding table are made from high-chrome alloy with enhanced wear resistance, extending service life by 2–3 times. Energy consumption is 30–40% lower than ball mills, directly cutting electricity bills.
- Automatic Control System: PLC/DCS-based control enables remote monitoring, automatic pressure adjustment, and real-time fineness feedback, minimizing labor intervention and human error.
- High Environmental Protection: The system operates under negative pressure with a fully sealed structure, preventing dust leakage. Noise levels remain below 85 dB(A), meeting stringent environmental regulations.

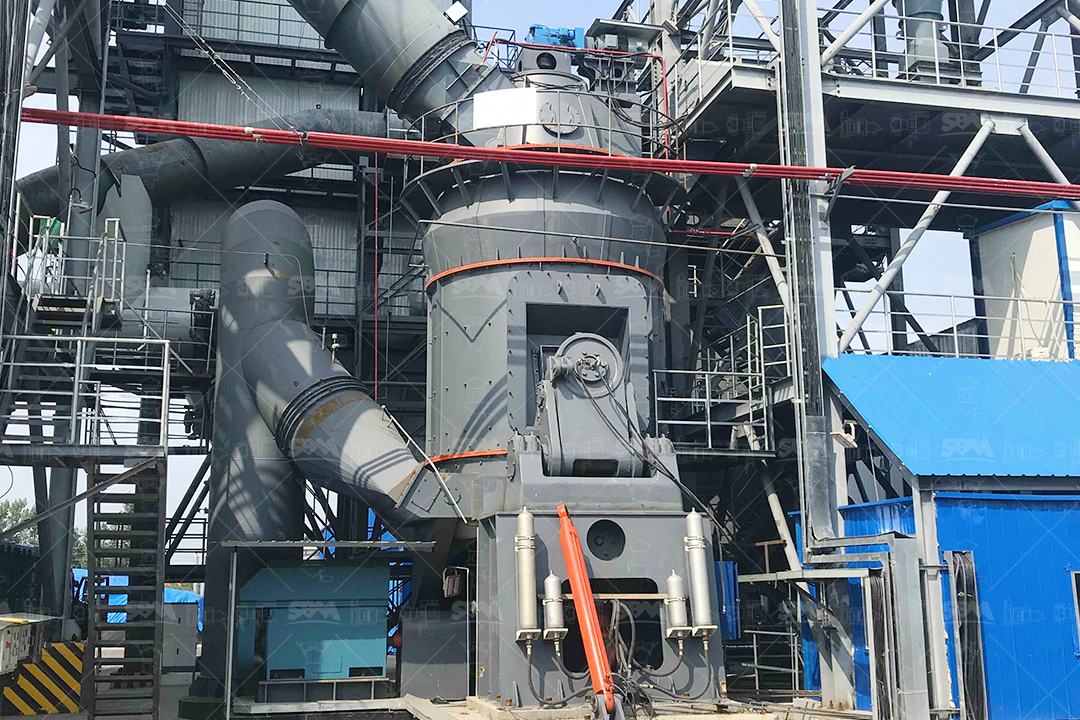

Application in Composite Steel Slag Powder
Composite steel slag powder, when blended with blast furnace slag, fly ash, or clinker, significantly enhances the performance of cement and concrete. The high specific surface area promotes pozzolanic and hydraulic reactions, improving late-age strength, durability, and resistance to sulfate attack. SBM's vertical mill consistently achieves a specific surface area of 450–550 m²/kg, with optional fineness up to 600 m²/kg using the LUM Ultrafine Vertical Mill for premium applications. The mill's ability to handle feed sizes up to 50mm and moisture content up to 15% makes it robust for direct slag processing without pre-drying. With capacities ranging from 3 to 400 tph, the system scales from pilot plants to large industrial production lines.
Technical Comparison: Vertical Mill vs. Ball Mill
| Parameter | Ball Mill | SBM Vertical Mill |
|---|---|---|
| Specific Energy Consumption | 35–45 kWh/t | 20–28 kWh/t |
| Specific Surface Area Achievable | 300–400 m²/kg | 450–600 m²/kg |
| Wear Parts Life (Grinding Media/Roller) | 500–800 hours | 2000–4000 hours |
| Floor Space Required | 100% (baseline) | 50% |
| Noise Level | >95 dB(A) | <85 dB(A) |
Customer Success and Global Reach
SBM has installed over 500 vertical mills worldwide, with numerous references in steel slag processing across China, India, Turkey, Russia, and Southeast Asia. One steel mill in eastern China increased their slag powder specific surface from 350 m²/kg to 520 m²/kg after switching from a ball mill to the LM vertical mill, while reducing energy consumption by 35%. The system's automatic anti-vibration control also minimized downtime caused by hard slag lumps, improving overall equipment effectiveness (OEE) by 20%.
FAQ: Common Customer Concerns
- Q: How do you prevent metallic iron from contaminating the final slag powder?
A: Our mill incorporates a magnetic separation step before grinding, and the classifier design ensures that coarse metallic particles are rejected and returned for further processing. The final powder typically contains less than 0.5% metallic iron, meeting GB/T 20491-2017 standard. - Q: What is the typical wear life of grinding rollers for steel slag?
A: For steel slag with a hardness of 7–8 Mohs, the wear life of our high-chrome rollers is approximately 2500–3500 operating hours, depending on feed size and moisture. This is 3–4 times longer than conventional ball mill liners. - Q: Can the same mill handle both steel slag and blast furnace slag?
A: Yes, the LM vertical mill is designed with adjustable grinding pressure and classifier speed, allowing seamless switching between different slag types. However, we recommend separate storage and feeding systems to avoid cross-contamination. - Q: How does the mill perform with high-moisture steel slag (e.g., 10–15%)?
A: The integrated hot gas generator provides efficient drying within the mill, handling moisture up to 15% without affecting grinding efficiency. The moisture is evaporated during the grinding process, and the exhaust gas is treated by a bag filter. - Q: What is the start-up time after a complete shutdown?
A: The vertical mill can reach full production within 10–15 minutes from cold start, thanks to the intelligent pre-heating sequence and automatic lubrication system. This is significantly faster than ball mills, which require 30–60 minutes for warm-up.
