Raymond mill maintenance guide and analysis

Published: October 5, 2023

Proper maintenance of Raymond mills is the cornerstone of maximizing equipment uptime, ensuring consistent product quality, and extending the service life of key wear parts. Based on decades of field data and feedback from over 9,500 customers across 180 countries, this guide provides a comprehensive analysis of common maintenance challenges, practical solutions, and best practices for machines such as the European Trapezium Grinding Mill (MTW Series), Vertical Roller Mill, Ultrafine Mill, and other grinding systems. Whether you are processing limestone for desulfurization, pulverizing coal for power generation, or producing ultra-fine calcium carbonate, understanding the maintenance rhythms of your mill can reduce unplanned downtime by as much as 40% and lower operational costs significantly. This article focuses on tangible, real-world advice derived from SBM Machinery’s extensive experience in the global grinding industry.

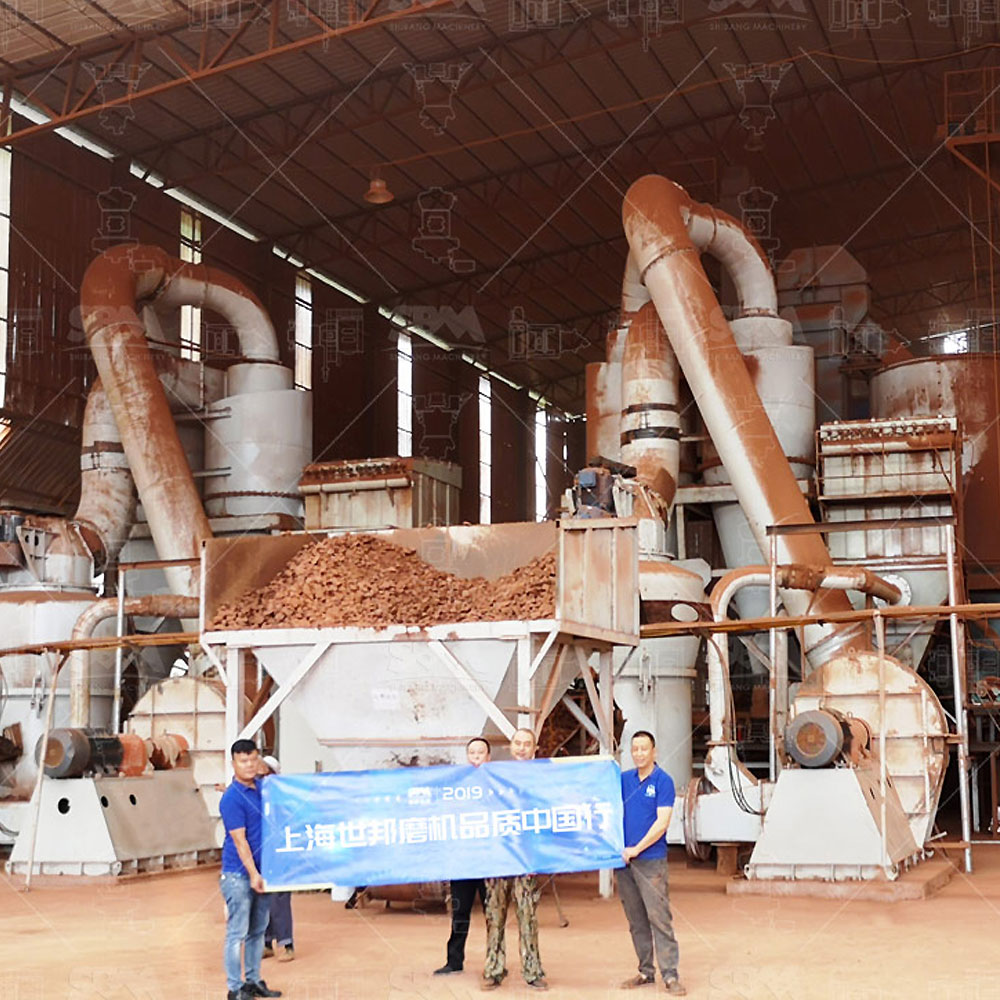

Understanding the Core Components and Wear Patterns

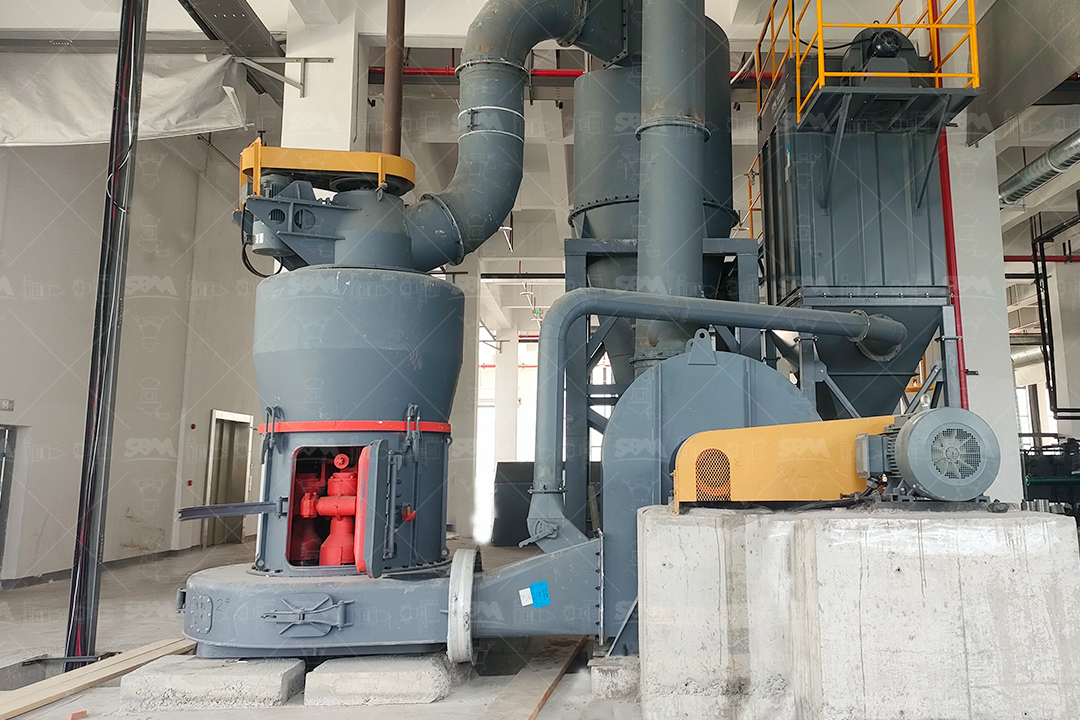

Every Raymond mill, regardless of its specific model, shares a set of critical components that require regular inspection: grinding rollers, grinding rings, shovel blades, air ducts, and the powder classifier. For instance, in the MTW European Trapezium Mill, the combined-type shovel blade design allows for easy replacement of only the blade tip, not the entire assembly. This feature alone can reduce maintenance parts costs by up to 30% over the machine’s lifetime. However, many operators neglect to check the wear pattern on the curved shovel blades. If the feeding angle becomes distorted due to uneven wear, the material distribution on the grinding ring becomes uneven, accelerating roller wear and reducing throughput. A simple weekly visual inspection of the blade curvature can prevent this cascading failure.

For the LM Vertical Roller Mill, the grinding rollers and grinding plate never make direct contact during normal operation, which is a key design advantage. Yet, maintenance teams often overlook the hydraulic system pressure settings. If the grinding pressure is set too high, it can cause metal fatigue in the roller bearings and increase vibration levels. The recommended practice is to calibrate the hydraulic pressure at least once per month and to inspect the nitrogen accumulator bladders every quarter. A common sign of trouble is a gradual increase in mill vibration readings without a corresponding change in feed size – this usually points to worn roller tires or a misaligned grinding table.

Preventive Maintenance Schedule: Real-World Intervals

A maintenance schedule must be adapted to your specific material and operating hours. Based on analysis of thousands of installations, the following intervals are recommended as a baseline:

• Daily (8-hour shift): Check the lubrication oil level in the main gearbox and the oil return flow from the internal oil absorption system. Listen for any abnormal noise from the bevel gear transmission – a clicking sound often indicates a loose gear mesh. Clean the air inlet filter to prevent dust buildup in the volute.
• Weekly: Inspect the wear-resistant guard plates inside the arc air duct. A worn guard plate can cause air energy loss, reducing classification efficiency by 10-15%. Check the tightness of all bolts on the grinding roller assembly. For MTW mills, verify the clearance between the shovel blade and the grinding ring – it should remain between 5 mm and 10 mm.
• Monthly: Perform a full analysis of the lubricating oil from the main gearbox. Contamination with fine particles indicates a seal failure in the grinding chamber. For the SCM Ultrafine Mill, inspect the vertical turbine classifier blades for erosion. A 1 mm reduction in blade thickness can reduce classification sharpness and increase the presence of coarse particles in the final product.
• Quarterly: Recalibrate the frequency converters that control the classifier speed and the main motor. In the LUM Ultrafine Vertical Mill, ensure the grinding curve profiles on the roller shell and lining plate still match the design geometry. A deviation of more than 3 mm requires replacement to maintain material bed stability.
• Annually: Replace the main bearing grease and perform a full alignment check of the drive train. Inspect the inner wall of the grinding chamber for erosion, particularly in areas where the material stream impacts directly.

Common Operational Pitfalls and Their Root Causes

One of the most frequent complaints from plant managers is a sudden drop in capacity or an increase in energy consumption per ton of product. Our analysis of troubleshooting logs reveals three dominant root causes:

1. Inconsistent Feed Material: Many operators assume that the mill can handle any feed size up to the spec limit (e.g., 0-50 mm for MTW mills). However, feeding material that consistently stays at the upper size limit forces the grinding rollers to work at maximum pressure, causing accelerated wear. The ideal feed distribution should have 80% of the material below 30 mm for most trapezium mills. Installing a grizzly screen or a simple pre-crusher can extend roller and ring life by 50%.
2. Ignoring the Classifier: The powder classifier is often treated as a 'set and forget' component. In the SCM Ultrafine Mill, the frequency-controlled classifier must be adjusted whenever the target fineness changes. If the classifier speed is set too low for a fine product, coarse particles will bleed through, causing customer rejections. Conversely, running the classifier too fast increases power draw without improving quality. A quick monthly check using a sieve analysis of the product can verify classifier performance.
3. Lubrication Neglect: The 'inner oil absorption lubrication system' in the MTW mill is a game-changer, as it recycles oil within the system. But some operators fail to change the oil filter element on schedule. A clogged filter reduces oil flow to the cone gear transmission, leading to overheating and eventual gear failure. Using the wrong oil viscosity – too thick in cold climates – is another common error that causes high starting torque.

Emergency Troubleshooting: When Things Go Wrong

Even with the best maintenance, issues can arise. The following quick-diagnosis table is based on field support tickets handled by SBM’s engineering team:

Conclusion

Effective Raymond mill maintenance is not a one-time activity but a continuous process of observation, measurement, and adjustment. By focusing on the three pillars – component inspection, scheduled servicing, and root cause analysis – operators can achieve the mill’s rated capacity (3-400 tph depending on model) with minimal interruptions. The high wear-resistance designs like the combined shovel blades and volute air ducts already reduce the maintenance burden, but human oversight remains irreplaceable. Investing in a simple vibration monitoring kit and training operators to recognize early warning signs will pay for itself many times over in avoided repairs and consistent product quality.

Frequently Asked Questions (FAQ)

1. Q: Why does my Raymond mill’s output drop suddenly even though the feed material is the same?
   A: This is often due to wear on the grinding roller or ring surface. When the grinding curves become flattened, the material bed cannot form properly, reducing grinding efficiency. Check the roller and ring for surface cracks or flattening, and replace them if the wear exceeds 8 mm at any point.
2. Q: My product contains a noticeable amount of coarse particles even though I haven’t changed the classifier setting. What could be wrong?
   A: The most common cause is leakage in the seal between the classifier rotor and the housing. Fine material bypasses the classification zone. Inspect the labyrinth seals and check for any gaps greater than 0.5 mm. Another possibility is a hole in the discharge pipe that allows coarse material to mix with the finished product.
3. Q: The mill is making a loud, rhythmic knocking noise during operation. Is this an emergency?
   A: Yes. Stop the mill immediately. A rhythmic knock usually indicates a loose grinding roller assembly or a failing bearing in the main shaft. Continued operation can lead to catastrophic failure of the cone gear or the main spindle. Inspect the roller arm pivot pins and the bearing housing bolts first.
4. Q: How often should I replace the lubricating oil in the gearbox of an LM Vertical Roller Mill?
   A: Under normal operating conditions (8-12 hours per day), change the oil every 6 months. For continuous 24/7 operation, change every 4 months. Always use oil that meets the ISO VG 460 specification for heavy-duty gearboxes. Sending an oil sample for analysis every 3 months can extend oil life by detecting contamination early.
5. Q: My SCM Ultrafine Mill is consuming 30% more power for the same output and fineness. What should I check?
   A: First, inspect the grinding roller and ring for wear – worn parts require more pressure to achieve the same size reduction. Second, verify that the classifier speed matches the target fineness. An inefficient classifier recirculates too much material, wasting energy. Third, check the air duct volute for any blockages or deformed guard plates that restrict airflow.
